Previous generation

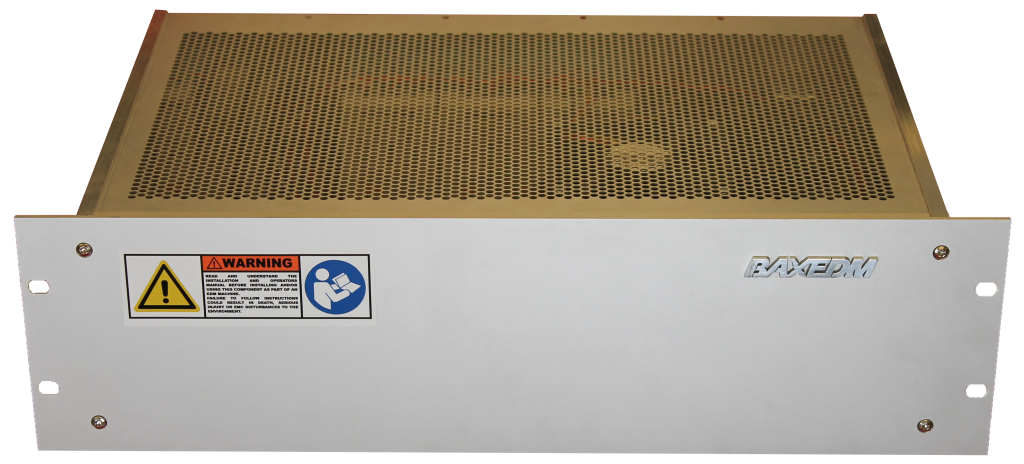

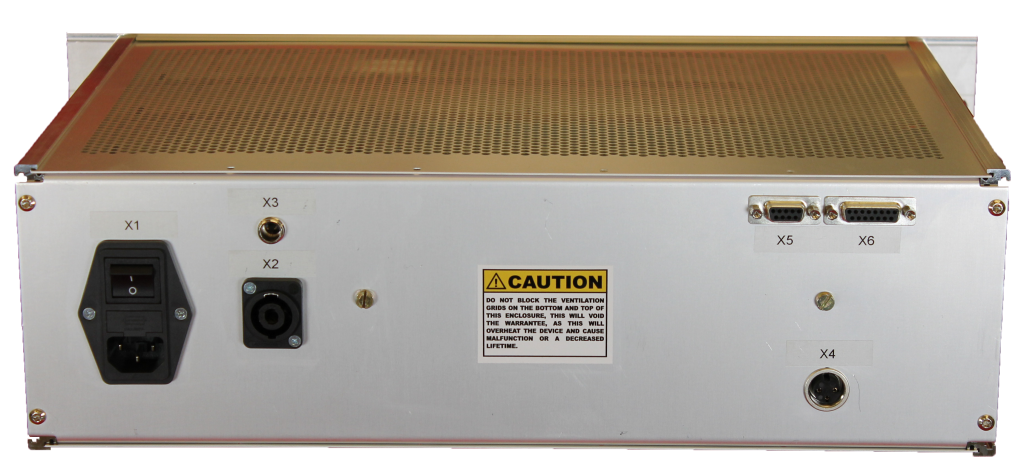

BX17 arc generator
The BX17 is the generator the first customers have been cutting with for years. It speaks ASCII over RS-485 and sends an analog differential speed command to the motion controller. It is straightforward to use with a CNC that can move backwards, such as Dynomotion. It is no longer sold.
Features
- Single compact universal 19″ 3U enclosure
- High-efficiency switched-mode current source
- Mains input 100–240 V, 50/60 Hz
- Serial ASCII interface
- Serial Modbus-RTU interface, listed on the BX17 page as an upcoming software release
- Fully configurable arc parameters
- Arc current up to 30 A
- Cutting frequency up to 200 kHz
- ISO-frequency mode and ISO-pulse mode
- Single-shot mode from an optically isolated external trigger
- Analog differential speed command for CNC feed control
- Differential sense input for arc voltage
- All data I/O optically isolated
- Workpiece edge finding, with a dedicated isolated output
- Switched 12 V output for the warning light
- Firmware updates through USB
- PC dashboard with a material parameter library
- Self diagnostics, hardware authentication and secure boot
- Stand-alone mode: serial is only required once, to store parameters
Still part of a BX17 machine
- Dashboard application and parameter library
- Firmware, latest public release 0.9.5
- Fusion 360 post for Dynomotion
- BX17 knowledge base
The published customs description of the BX17 calls it a signal generator for wire EDM: an aluminum enclosure, three custom circuit boards and four OEM power supplies, RoHS, REACH and CE. Shipping notes.
