Build
Plans for a 2-axis wire machine.
BaxEDM publishes the CAD, the water schematic, the cabinet wiring and the bill of materials used for its own MK3-style wire machine with the BX18. The first-cut instructions are the place to start once the machine exists.

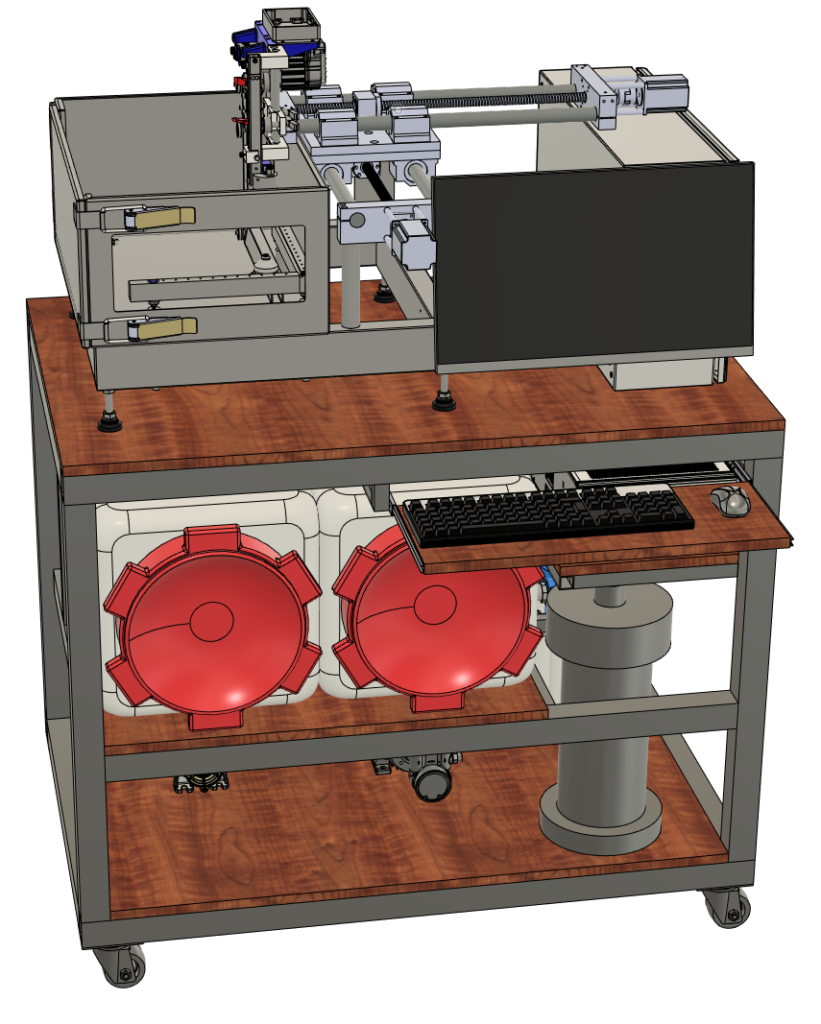

MK3 CAD
Model of the MK3 machine.
Water schematic
MK3 water system.
Cabinet wiring
2D wire machine, three pumps, BX18 and C-Arc.
Lathe axis
An EDM lathe axis that mounts on the work surface of a wire machine. Also written up on Hackaday.
Hackaday articleBuild videos
A video tutorial series on designing and building a custom wire EDM. New parts are posted on the BAXEDM YouTube channel.
BAXEDM on YouTubeKey parts for a 2-axis BX18 build
This is the published European-sourced list. Distributor links go stale; the part numbers are the useful half. An earlier MK2 draft is still on the page index.
Rainbird 100-HV valves. They are sold for 24 V AC. This cabinet has no 24 V AC supply. Drive them at 12 V DC. Do not use 24 V DC. That will damage them.
| Part | Qty | Manufacturer / number | Note |
|---|---|---|---|
| BX18 arc generator | 1 | BaxEDM X-15-BX18-01 | BaxEDM |
| C-Arc controller | 1 | BaxEDM X-15-CACNTRL-01 | BaxEDM |
| BX18 and C-Arc installation kit | 1 | BaxEDM X-15-INSTKIT18 | BaxEDM |
| Mini PC for LinuxCNC | 1 | Minisforum GK41 | Two Ethernet ports |
| Servo drive and closed-loop stepper | 2 | ECT60 and 57AM23ED | X and Y |
| Solid-state relay | 2 | Anly ASR-M02DD-1 | |
| SSR for pump motors | 3 | Panasonic AQA211VL | Inductive loads |
| Wire chopper motor | 1 | Micro Motors E192.12.18 | |
| Wire handling servos | 2 | Teknic CPM-MCVC-2310S-RLN | ClearPath |
| 12 V supply, mini PC | 1 | Mean Well MDR-40-12 | |
| 12 V supply, chopper, fans, light, valves | 1 | Mean Well MDR-40-12 | |
| 5 V logic supply | 1 | Mean Well MDR-20-5 | |
| 48 V, wire servos | 1 | Mean Well MDR-100-48 | |
| 48 V, X and Y motors | 1 | Mean Well MDR-100-48 | |
| DIN terminals | 150 | Wago 2001-1201 | |
| DIN jumpers | 56 | Wago 2001-402 | |
| DIN rail | 3 | Phoenix 1207640, NS 35/7,5 | |
| DIN timer | 1 | Selec 600XU-A-1-CU | |
| Electrical cabinet | 1 | Schneider NSYS3D4620P | 400 × 600 × 200 mm |
| Water drums | 2 | Curtec UN 1H2W/X84/S/–/NL/CURTEC 180550 | Clean and dirty water, about 80 L |
| Water pump, resin or fast fill | 1 | DAB JetInox 132M | |
| Water pump, dirty return | 1 | DAB KPS 30/16 | Through the filters into the clean tank |
| Rotary vane pump head | 1 | NU.ERT PRG6ASX, 600 l/h | High-pressure flush. Indumex SKU 67101006 |
| Pump coupling | 1 | NU.ERT PR2194 / PR2196, IEC71 B14 | Indumex SKU 67000071 |
| Flush pump motor | 1 | T1A 712-4, 0.37 kW, 1400 rpm, B34 | Indumex SKU 45461005 |
| Frequency converter | 1 | Teco L510-201-SH1F | Indumex SKU 79030204 |
| Conductivity controller | 1 | Hanna BL983320-2 | |
| Conductivity probe | 1 | Hanna HI7634-00 | |
| Level switches | 4 | TRU Components TC-10352160 | |
| 10″ filter housing, 3/4″ | 4 | ICP-FH10 | 5 µm, 1 µm, and two deionization housings |
| Empty 10″ resin cartridge | 2 | SKU 8720933719658 | |
| 10″ 5 µm filter | 1 | IcePure ICP-PPL10-05 | |
| 10″ 1 µm filter | 1 | IcePure ICP-PP10-01 | |
| Electric water valve | 2 | Rainbird 100-HV | Drive at 12 V DC, never 24 V DC |
Original distributor links, the MK2 early draft, water-system articles and the workpiece-clamping notes are collected on the page index. Those articles keep their existing addresses.
